V6-H-M1 variable frequency drive (VFD) with simple servo function

V&T EcoDriveCN® V6 series field-oriented control and torque control variable speed drive (VSD)

Has the motor the encoder?
Do you want to control the motor and machine precisely?
Do you want to achieve closed loop field-oriented control (FOC) with V&T EcoDriveCN® V6-H-M1 drives of simple servo function?

Thus you need to add PG card for the closed loop field-oriented control frequency converter of simple servo function. several models of PG cards are available for your application. Just visit to choose suitable PG cards now.

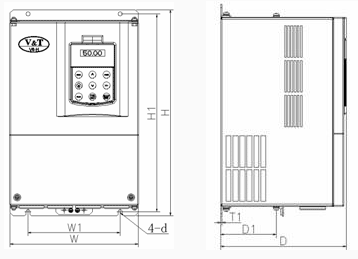

size of V6-H-M1-4T7.5G/11L and below power class variable freqency drive

V6-H-M1 VFD size

installation size of V6-H-M1-4T11G/15L and larger horsepower variable freqency drive

Voltage	Type	Outline and mounting dimension(mm)								Approximate weight(kg)
		W	H	D	W1	H1	D1	T1	mounting hole d
400V	V6-H-4T0.75G/1.5L	118	190	155	105	173	40.8	3	5.5	1.5
	V6-H-4T1.5G/2.2L	118	190	175	105	173	60.5	4	5.5	2.6
	V6-H-4T2.2G/3.7L
	V6-H-4T3.7G/5.5L
	V6-H-4T5.5G/7.5L	155	249	185	136	232	69	8	5.5	4.5
	V6-H-4T7.5G/11L
	V6-H-4T11G/15L	210	337	200	150	324	88	2	7	8.5
	V6-H-4T15G/18.5L
	V6-H-4T18.5G/22L	289	440	215	200	425	88	2.5	7	17
	V6-H-4T22G/30L
	V6-H-4T30G/37L
	V6-H-4T37G/45L	319	575	212	220	553	90.5	2.5	10	25
	V6-H-4T45G/55L
	V6-H-4T55G/75L	404	615	255	270	590	86.5	3	10	35
	V6-H-4T75G/90L
