As the leader of drives & controls, V&T Technologies Co., Ltd. are pleased to offer Mitsubishi Electric frequency inverters as part of our product portfolio.

Mitsubishi Electric frequency inverters(VSD, VFD, AC drives, variable speed drives, variable frequency drives, VVVF)

EcoDriveCN® drives are proud to be an authorized distributor for Mitsubishi Electric. Automation Solutions Provider Program (ASPP) distributors have dedicated resources and personnel committed to supporting all the Mitsubishi Electric automation product lines, while specializing in providing Mitsubishi motion/servo and modular controller solutions.

---

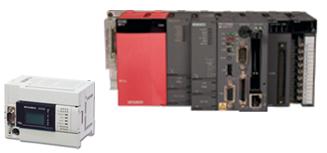

Programmable Logic Controllers

Mitsubishi offers Automation Platforms including modular PLCs to multi-disipline PACs. The L Series is a powerful but compact modular controller with many features built-in to the CPU itself. The rack-free design promotes high system flexibility with minimum form factor. The iQ Platform unifies all of the Mitsubishi Electric automation disciplines into a one-of-a-kind modular Programmable Automation Controller (PAC).

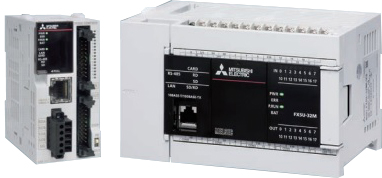

MELSEC iQ-F Series - FX5U

Designed on the concepts of outstanding performance, superior drive control and user centric programming, Mitsubishi's F Series has been reborn as the MELSEC iQ-F Series.

From stand alone use to networked system applications, MELSEC iQ-F Series brings your business to the next level of industry, offering enhanced high speed bus, expanded built-in functions, advanced SSCNETIII/H support and improved engineering environment. Program and parameters are set with the GXWorks3 engineering software.

The FX5U gives the FX a performance boost and adds features that set benchmark standards for compact PLCs. It enables users to develop more complex and sophisticated automation systems, as well as higher performance applications, without having to migrate to a larger and more costly PLC family.

Connectivity
The FX5U offers simple connection options to a wide range of automation equipment, including Mitsubishi Electric servos and inverters, Cognex vision systems, networks and energy meters, with reduced wiring effort and no additional programming.

Positioning Control
The FX5U includes Mitsubishi Electric´s Simple Motion Unit as an intelligent function module, providing the ability to perform sophisticated motion control for up to 4 axes. Functions include linear interpolation, circular interpolation, positioning control, synchronized control, encoder following and electronic cam.

---

HMI Operator Interface Terminals

Mitsubishi offers three families of HMI products.The GOT1000 platform is an all new and evolutionary family of high performance Graphical Operator Terminals (GOT).

The F900 GOT Series of Graphical Operator Terminals(GOT) is a cost-effective line of touch screen displays feature widescreen and hand-held options. The E1000 Series is an all new family of high performance, high functionality and flexible panel-mount HMI terminals. This family of terminals offers a comprehensive list of features and functions to uniquely bridge the gap between high-end SCADA systems and dedicated HMIs.

---

Servo Motion Control

Mitsubishi's offers a wide range of Servo Motion capabilities. The MR-J3 has raised the bar for servo speed and performance with a capacity range of 50W to 55kW, we reduced the size of both the amplifier and motor, added a high resolution encoder and advanced auto-tuning and vibration control. With even higher positioning accuracy and responsiveness, the MR-E Super is an excellent choice for applications ranging from 100W to 2kW. The MR-J2-JR supports the following control methods: Position, Speed, Torque, SSCNET Network, Built-In Motion, and RS-485 Multi Drop.

---

Variable Frequency Drives

Mitsubishi offer a wide range of Variable Frequency Drives, from the cost-cost effective variable speed control solution for general purpose applications to the the A700,a high performance drive that features many of the special technologies originally developed for Mitsubishi Electric servo drive products, such as adaptive auto-tuning that automatically compensates for changes in load inertia. The result is smoother operation, less downtime and ultimately, lower operating costs. Control modes include Velocity, Torque and Positioning.

---

MR-J4-TM Servo Controller with EtherCAT®

Even when a control system is specified by the end user, the chosice of servo drives is frequently left to the OEM. Now we can offer state-of-the-art servo performance.

Mitsubishi Electric introduces state-of-the-art servo performance with Advanced Vibration Suppression Control II™, One-Touch Auto-Tuning™, and incredible reliability with an EtherCAT® interface for use with custom PC based control systems or competitor’s EtherCAT motion systems. The MR-J4-TM Multi-Network Servo Drive with EtherCAT combines the industry-leading performance, features, and reliability of the MR-J4 Series servo system with an EtherCAT interface for customers where custom PC based control systems or competitor’s EtherCAT controllers are specified.

---

MELSEC iQ-F Series - FX5U

Designed on the concepts of outstanding performance, superior drive control and user centric programming, Mitsubishi's F Series has been reborn as the MELSEC iQ-F Series.

From stand alone use to networked system applications, MELSEC iQ-F Series brings your business to the next level of industry, offering enhanced high speed bus, expanded built-in functions, advanced SSCNETIII/H support and improved engineering environment. Program and parameters are set with the GXWorks3 engineering software.

The FX5U gives the FX a performance boost and adds features that set benchmark standards for compact PLCs. It enables users to develop more complex and sophisticated automation systems, as well as higher performance applications, without having to migrate to a larger and more costly PLC family.

Connectivity
The FX5U offers simple connection options to a wide range of automation equipment, including Mitsubishi Electric servos and inverters, Cognex vision systems, networks and energy meters, with reduced wiring effort and no additional programming.

Positioning Control
The FX5U includes Mitsubishi Electric´s Simple Motion Unit as an intelligent function module, providing the ability to perform sophisticated motion control for up to 4 axes. Functions include linear interpolation, circular interpolation, positioning control, synchronized control, encoder following and electronic cam.

---

PowerGate 66

The PowerGate 66 IP66 / NEMA 4 variable frequency drive (VFD) is Mitsubishi’s introduction to the decentralized drive market.

The stand-alone VFD is an engineered solution incorporating a version of the Mitsubishi Electric E700 VFD into a custom made NEMA 4 (water resistant) enclosure allowing the drive to be placed closer to the motor even in harsh environments.

The PowerGate 66 drive is especially suitable for applications that require precise motor speed control, including conveyors used in food and beverage operations and material handling, and the control of pumps and fans in HVAC and water handling applications, or in any application where the drive is exposed to water and dust.

Beyond its decentralized design, advantages of the PowerGate 66 include its unique keypad and display. The LCD displays information in words, rather than number-based codes, as is the industry norm. And to simplify programming, the keypad has10 buttons laid out similarly to a pocket calculator.

---

GOT Simple HMI

The new range of GS HMIs from Mitsubishi Electric are a cost-effective series offering a simple and flexible entry-level option for newcomers to the world of machine visualization. Besides all the standard basic functions, it also includes additional ones such as data logging, FA transparent mode and operator authentication.

The FA transparent function allows access to automation components such as PLCs, frequency inverters and servo amplifiers within a system via the HMI. This enables data from connected components to be viewed and parameters or other settings to be adjusted from a central location.*These 7" and 10" panels share a common specification apart from the size of the display.

• 9MB of user memory WVGA 800 x 480 display with LED backlight
• Built-in Ethernet port, RS422, RS-232 ports and USB device port
• Built-in SD card slot
• Vertical display capability
• Operator name and password protection

---

MELSEC iQ-R Automation Controller

The New Mitsubishi iQ-R series CPU offers dramatic improvements in performance, setting new benchmark standards for processing speed. This not only enables users to realise enhanced system designs, but also provides the basis for significant reduction in hardware costs. At the same time, the iQ-R series offers reductions in development cost, maintenance cost and risk of system failure, while providing an innovative upgrade path that will enable users to take advantage of ongoing developments through software upgrades rather than hardware upgrades.

Internal Database
The CPU includes an internal database that can be installed into the SD memory card. This allows a selection of database commands that can add/ delete/change records to be utilized for simple recipe functions. It is also easy to import/export Unicode files for use in spreadsheets. This is useful where multiple product variations are produced using the same machine process.

High Speed and Synchronization
The iQ-R boasts a high speed system bus for synchronized data communications between multiple CPUs. This improves performance and accuracy, especially for high speed motion control applications.

Enhanced Security Features
iQ-R has a variety of security features to protect intellectual property and plant safety. Engineers can restrict access at the network level using IP filtering, lowering the risk of hacking or any other unauthorized third party access. At the controller level, security key authentication prevents unauthorized access to the program or execution of the CPU.
