Has the motor the encoder?
Do you want to control the motor and machine precisely?
Do you want to achieve vector control closed loop control with V6-H frequency inverters?

Thus you need to add PG card for the inverters. several models of PG cards are available for your application. Just visit to choose suitable PG cards now.




failure rate: < 0.15%, just the same as other world-class traditional brands, such as Siemens, ABB, Emerson, Schneider, Rockwell Automation (Allen Bradley), Lenze, Parker, Yaskawa, Mitsubishi, Omron
authorized CE, issued by ECMG
18-month warranty period
prompt delivery lead time: 1-3 days
supply to Tata group, REGAL, Ingersoll Rand, Foxconn, Tata group...

PID closed loop process control.
Parameters copy function.


Applications of V&T EcoDriveCN® drives:
Crane, machine tools (lathe, cutting machine, spindle control, milling machine), lift, hoist, textile industry, chemical industry, crushers, food and beverage, stone processing, wood working, conveyors, winches, compressors, bow thrusters, centrifuges, mills, oil and gas, mining, thrusters, rudders, seperators, compressor, edgers, chippers.

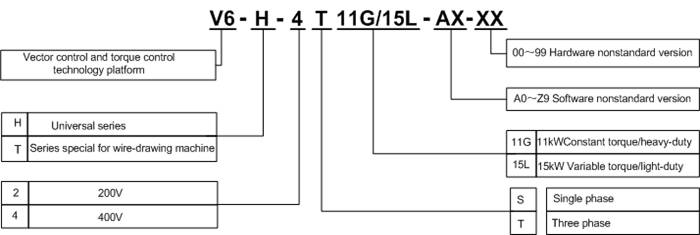

V6-H-4T90G Three-phase 400V closed loop vector control & torque control frequency inverter for constant torque/heavy-duty application

Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Motor Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	2.5	3.8	5.5	9	13	17	24	30	39	45	60	75	91	112	150
	Overload capability	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	3.5	6.2	9.2	14.9	21.5	27.9	39	50.3	60	69.3	86	104	124	150	201
Braking unit		Built-in as standard								Built-in as option
Protection class		NEMA 1 - IP20 (IP65 available)
Cooling mode		Self-cooling		Forced air convection cooling

Power(KW)		90	110	132	160	200	220	280	315	355	400	..	..	..	..	..
Motor Power(KW)		90	110	132	160	200	220	280	315	355	400
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	176	210	253	304	377	415	520	585	650	740
	Overload capability	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	160*	196*	232*	282*	352*	385*	491*	552*	624*	704*
Braking unit		External braking unit needed
NEMA Rating		NEMA 1- IP20 (IP65 is customized)
Cooling mode		Forced air convection cooling

V6-H-4T90G and larger horsepower drives are equipped with external DC reactor as standard.
V6-H-4T110L 3 phase 200V Constant torque/heavy-duty application

Power(KW)		1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90
Motor Power(KW)		1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	3.3	5.0	7.5	11	17	22	30	36	45	56	72	91	110	142	176
	Overload capability	115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	5.6	8.1	13.5	19.5	26	39	50.3	60	69.3	86	104	124	150	190	235
Braking unit		Built-in as standard								Built-in as option
Protection class		IP20
Cooling mode		Self-cooling		Forced air convection cooling

Power(KW)		110	132	160	200	220	280	315	355	400	450	..	..	..	..	..
Motor Power(KW)		110	132	160	200	220	280	315	355	400	450
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	215	253	304	377	415	520	585	650	740	840
	Overload capability	115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	hree-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness <=3%; allowable frequency fluctuation: +-5%
	Rate current(A)	195*	232*	282*	352*	385*	491*	552*	624*	704*	792*
Braking unit		External braking unit needed
Protection class		IP20
Protection class		Forced air convection cooling

V6-H-4T110L and larger power closed loop vector control & torque control frequency inverters are equipped with external DC reactor as standard.
