Does the motor have the encoder?
Do you want to control the motor and machine precisely, improving the production quality?
Do you want to achieve vector control closed loop with V6-H AC variable speed inverters?

Thus you need to add PG card for the drives. several models of PG cards are available for your application. Just visit to choose suitable PG cards now.




failure rate: < 0.15%, just the same as other world-class traditional brands, such as Siemens, ABB, Emerson, Schneider, Rockwell Automation (Allen Bradley), Lenze, Parker, Yaskawa, Mitsubishi, Omron
authorized CE, issued by ECMG
18-month warranty period
prompt delivery lead time: 1-3 days
supply to REGAL, Ingersoll Rand, Foxconn, Tata group...

PID closed loop process control.
Parameter copy function.

Applications:
metallurgy, plastomer, textile industry, food-stuff, petroleum, chemical industry, paper making, pharmacy industry, printing, building material, crane and hoist, machine tools, oilfield, civil engineering, HVAC, industrial doors, mechanical handling, all kinds of machine equipments.

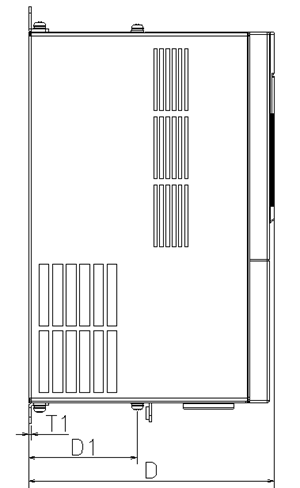

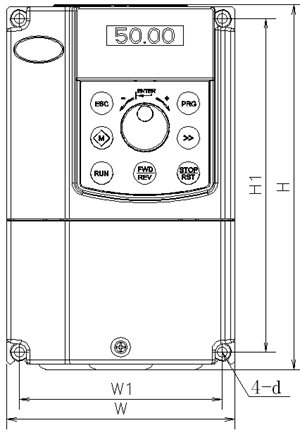

installation dimenstion of V6-H-4T7.5G/11L and smaller power torque control and vector control variable speeds (VSDs)

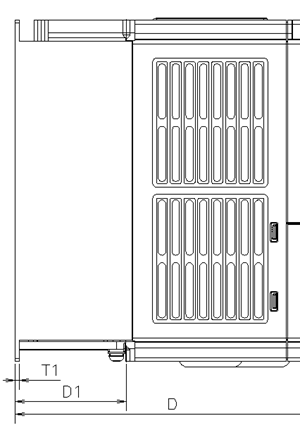

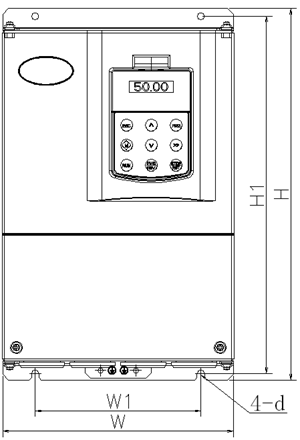

installation dimenstion of V6-H-4T11G/15L and larger power torque control and vector control (field-oriented control) variable speeds (VSDs)

Voltage	Type	Outline and mounting dimension(mm)								Approximate weight(kg)
		W	H	D	W1	H1	D1	T1	mounting hole d
200V	V6-H-2T0.4G	118	190	155	105	173	40.8	3	5.5	1.5
	V6-H-2T0.75G			175			60.5	4		2.2
	V6-H-2T1.5G			155			40.8	3		1.5
	V6-H-2T2.2G			175			60.5	4		2.2
400V	V6-H-4T0.75G/1.5L	118	190	155	105	173	40.8	3	5.5	1.5
	V6-H-4T1.5G/2.2L	118	190	175	105	173	60.5	4	5.5	2.6
	V6-H-4T2.2G/3.7L
	V6-H-4T3.7G/5.5L
	V6-H-4T5.5G/7.5L	155	249	185	136	232	69	8	5.5	4.5
	V6-H-4T7.5G/11L
	V6-H-4T11G/15L	210	337	200	150	324	88	2	7	8.5
	V6-H-4T15G/18.5L
	V6-H-4T18.5G/22L	289	440	215	200	425	88	2.5	7	17
	V6-H-4T22G/30L
	V6-H-4T30G/37L
	V6-H-4T37G/45L	319	575	212	220	553	90.5	2.5	10	25
	V6-H-4T45G/55L
	V6-H-4T55G/75L	404	615	255	270	590	86.5	3	10	35
	V6-H-4T75G/90L
	V6-H-4T90G	465	745	325	343	715	151.5	3	12	55
	V6-H-4T110L
	V6-H-4T110G
	V6-H-4T132L
	V6-H-4T132G	540	890	385	370	855	205.5	4	14	85
	V6-H-4T160L
	V6-H-4T160G
	V6-H-4T185L
	V6-H-4T185G
	V6-H-4T200L
	V6-H-4T200G
	V6-H-4T220L
	V6-H-4T220G	700	1010	385	520	977	210	4	14	125
	V6-H-4T250L
	V6-H-4T250G
	V6-H-4T280L
	V6-H-4T280G
	V6-H-4T315L
	V6-H-4T315G	810	1358	425	520	1300	210	4	14	215
	V6-H-4T355L
	V6-H-4T355G
	V6-H-4T400L
	V6-H-4T400G	810	1358	425	520	1300	210	4	14	215
	V6-H-4T450L
	V6-H-4T450G
	V6-H-4T500L
	V6-H-4T500G
	V6-H-4T560L

Remark: NEMA 1- IP20 as standard (IP65 is customized to your business)
