V5-H sensorless vector control variable frequency drive (VFD)
V&T EcoDriveCN® V5-H superb sensorless vector control (field-oriented control,FOC) AC inverters
failure rate: < 0.15%, just the same as other world-class traditional brands, such as
Siemens, ABB, Emerson, Schneider, Rockwell Automation (A-B), Lenze, Parker, Yaskawa, Mitsubishi, Omron
authorized CE, issued by
ECMG
18-month after-sale warranty period
delivery lead time: 1-3 days
supply to
REGAL, Ingersoll Rand, Foxconn, Tata group...
High level functionality and accuracy are offered by V5-H series.
Built-in PID function for closed loop control, are ideal for some energy saving applications.
Built-in
parameters copy function.
Enhanced features of large starting torque and the speed/torque characteristic match the demanding industrial requirements.
![EcoDriveCN drives for printing machine EcoDriveCN drives for printing machine](images/products/EcoDriveCN-drives-printing-machine.jpg)
Applicable Industries:
Food and beverage processing:
Dumpling making machine, food processing mixer, noodle machine;
Wood working machinery:
Side woodworking thickness planer, woodcarving machine, woodworking machine, simple wood-cutting machine, paint spraying machine;
Paper making and textile machinery:
Circular weaving machine, flat knitting machine, ribbon loom, industrial sewing machine, knitting machine, printing machine;
Fan and pump:
Central air conditioning system, wastewater treatment, constant pressure water supply system, water spraying, water irrigation pump;
Conveying and delivering machine:
Belt conveyor, automatic door, pull coil type iron door, dumb waiter, crown block X-Y axle;
Machine tools, CNC machine tools, metal working machines:
Grinding machine, drilling machine,
milling machine, plastic injection molding machine, die casting machine;
Coal and mining industry:
pumps, conveyors, mine winch, mine hoists, grinding mills, high-pressure grinding rolls;
Other application industries :
Industrial washing machine, steel plant, winders, screw feeders,
screw air compressor, grinder, running machine, feeding machine, iron, car washer, packing machine,
musical fountain in municipal engineering, cold rolling mill.

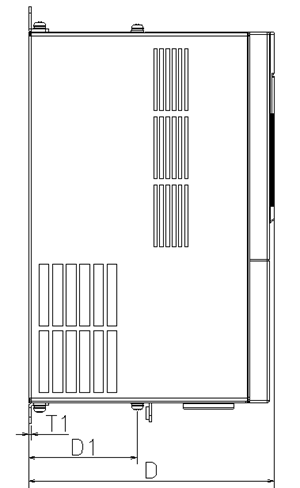

V5-H-4T7.5G/11L and below power rating sensorless vector inverters

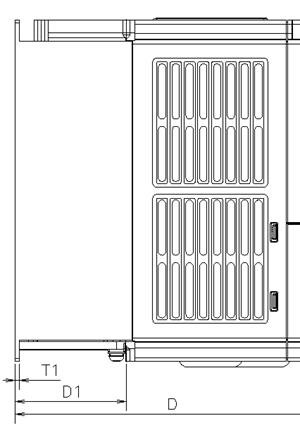

V5-H-4T11G/15L and above power rating sensorless vector inverters

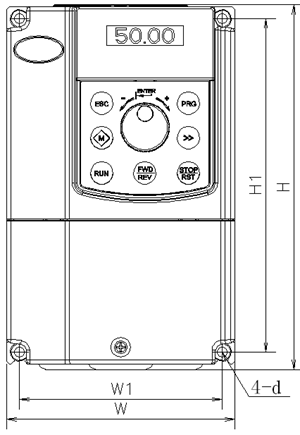

Outline and mounting dimension and approximate weight
Voltage |
Type |
Outline and mounting dimension(mm) |
Approximate weight(kg) |
W |
H |
D |
W1 |
H1 |
D1 |
T1 |
Mounting hole d |
200V |
V5-H-2T0.4G |
118 |
190 |
155 |
105 |
173 |
40.8 |
3 |
5.5 |
1.5 |
V5-H-2T0.75G |
118 |
190 |
175 |
105 |
173 |
60.5 |
4 |
5.5 |
2.2 |
V5-H-2T1.5G |
118 |
190 |
155 |
105 |
173 |
40.8 |
3 |
5.5 |
1.5 |
V5-H-2T2.2G |
118 |
190 |
175 |
105 |
173 |
60.5 |
4 |
5.5 |
2.2 |
400V |
V5-H-4T0.75G/1.5L |
118 |
190 |
155 |
105 |
173 |
40.8 |
3 |
5.5 |
1.5 |
V5-H-4T1.5G/2.2L |
118 |
190 |
175 |
105 |
173 |
60.5 |
4 |
5.5 |
2.6 |
V5-H-4T2.2G/3.7L |
V5-H-4T3.7G/5.5L |
V5-H-4T5.5G/7.5L |
155 |
249 |
185 |
136 |
232 |
69 |
8 |
5.5 |
4.5 |
V5-H-4T7.5G/11L |
V5-H-4T11G/15L |
210 |
337 |
200 |
150 |
324 |
88 |
2 |
7 |
8.5 |
V5-H-4T15G/18.5L |
V5-H-4T18.5G/22L |
289 |
440 |
215 |
200 |
425 |
88 |
2.5 |
7 |
17 |
V5-H-4T22G/30L |
V5-H-4T30G/37L |
V5-H-4T37G/45L |
319 |
575 |
212 |
220 |
553 |
90.5 |
2.5 |
10 |
25 |
V5-H-4T45G/55L |
V5-H-4T55G/75L |
404 |
615 |
250 |
270 |
590 |
86.5 |
3 |
10 |
35 |
V5-H-4T75G/90L |
V5-H-4T90G |
465 |
660 |
310 |
343 |
715 |
151.5 |
3 |
12 |
45 |
V5-H-4T110L |
V5-H-4T110G |
V5-H-4T132L |
V5-H-4T132G |
560 |
880 |
350 |
449 |
930 |
155 |
4 |
12 |
88 |
V5-H-4T160L |
V5-H-4T160G |
V5-H-4T200L |
V5-H-4T200G |
750 |
1000 |
380 |
420 |
1060 |
155 |
5 |
14 |
150 |
V5-H-4T220L |
V5-H-4T220G |
V5-H-4T280L |
V5-H-4T280G |
V5-H-4T315L |
V5-H-4T315G |
960 |
1290 |
400 |
520 |
1360 |
180 |
5 |
14 |
220 |
V5-H-4T355L |
V5-H-4T355G |
V5-H-4T400L |
V5-H-4T400G |
V5-H-4T450L |
